ATC-10/20/30 (Automatic Tool Changer with 10/20/30 kg Payload)
Product overview
- Enables a robot arm to exchange various tools by coupling and decoupling the robot-side unit (ATC-R) and the tool-side unit (ATC-T). Also called a quick changer.
- While conventional tool changers rely on external power sources such as pneumatics or electric motors for coupling and decoupling, our ATC achieves these actions purely through a mechanical latch mechanism, enabling power-free operation and maintaining a strong and secure connection.
Product specifications
| Model | ATC-10-R | ATC-10-T | ATC-20-R | ATC-20-T | ATC-30-R | ATM-30-T |
|---|---|---|---|---|---|---|
| Payload | 10 kg | 20 kg | 30 kg | |||
| Diameter | 70 mm | 70 mm | 91 mm | 91 mm | 112 mm | 112 mm |
| Height | 19.5 mm 1) | 21 mm 1) | 24 mm 2) | 26 mm 2) | 31 mm 3) | 33 mm 3) |
| Weight | 0.1 kg | 0.13 kg | 0.22 kg | 0.28 kg | 0.4 kg | 0.49 kg |
| Repeatability | 0.05 mm | 0.05 mm | 0.1 mm | |||
1) Height of combined ATC-10: 30.5 mm
2) Height of combined ATC-10: 38 mm
3) Height of combined ATC-30: 49 mm

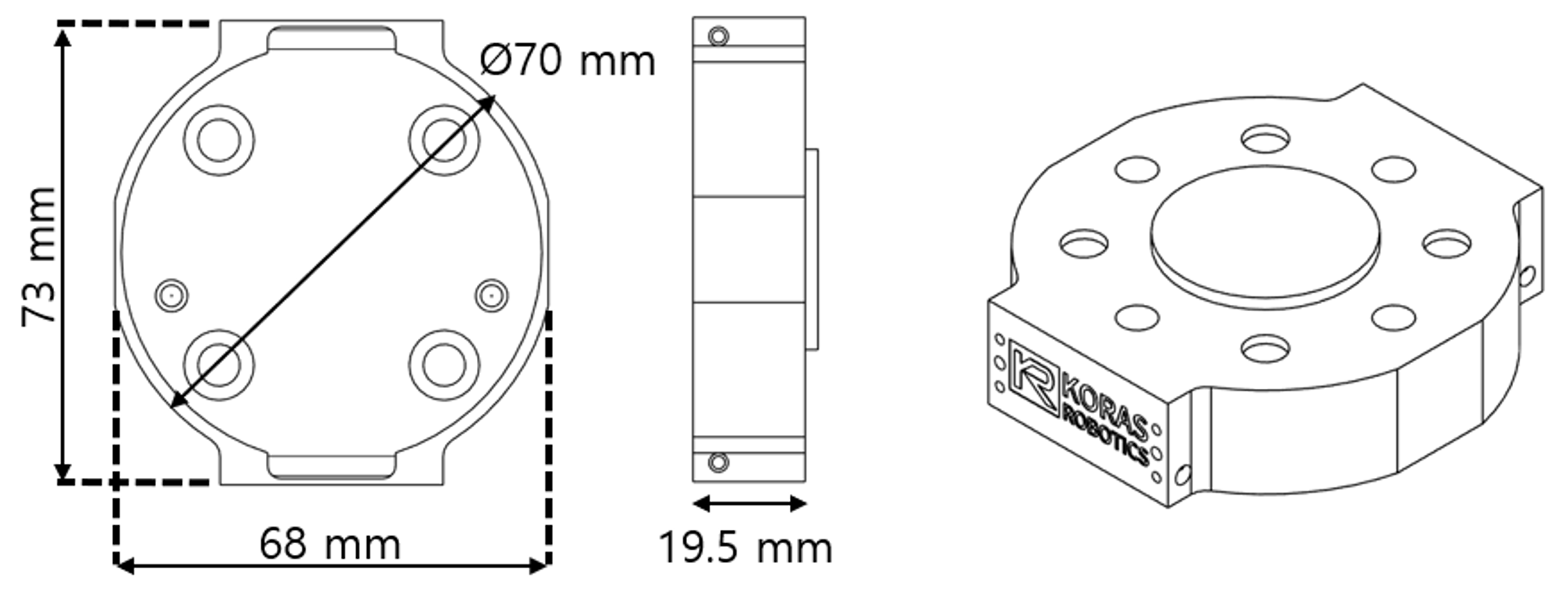

Dimensions of ATC-10-R

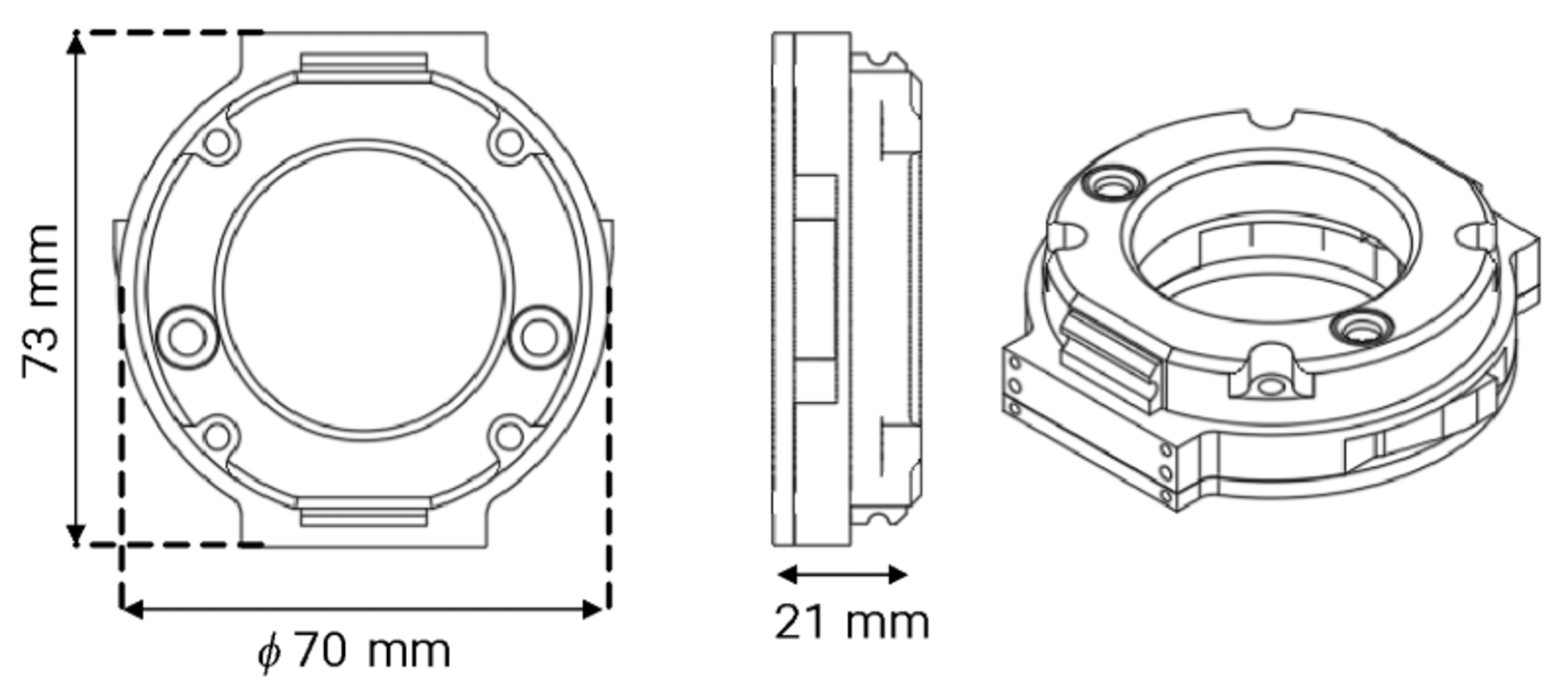

Dimensions of ATC-10-T

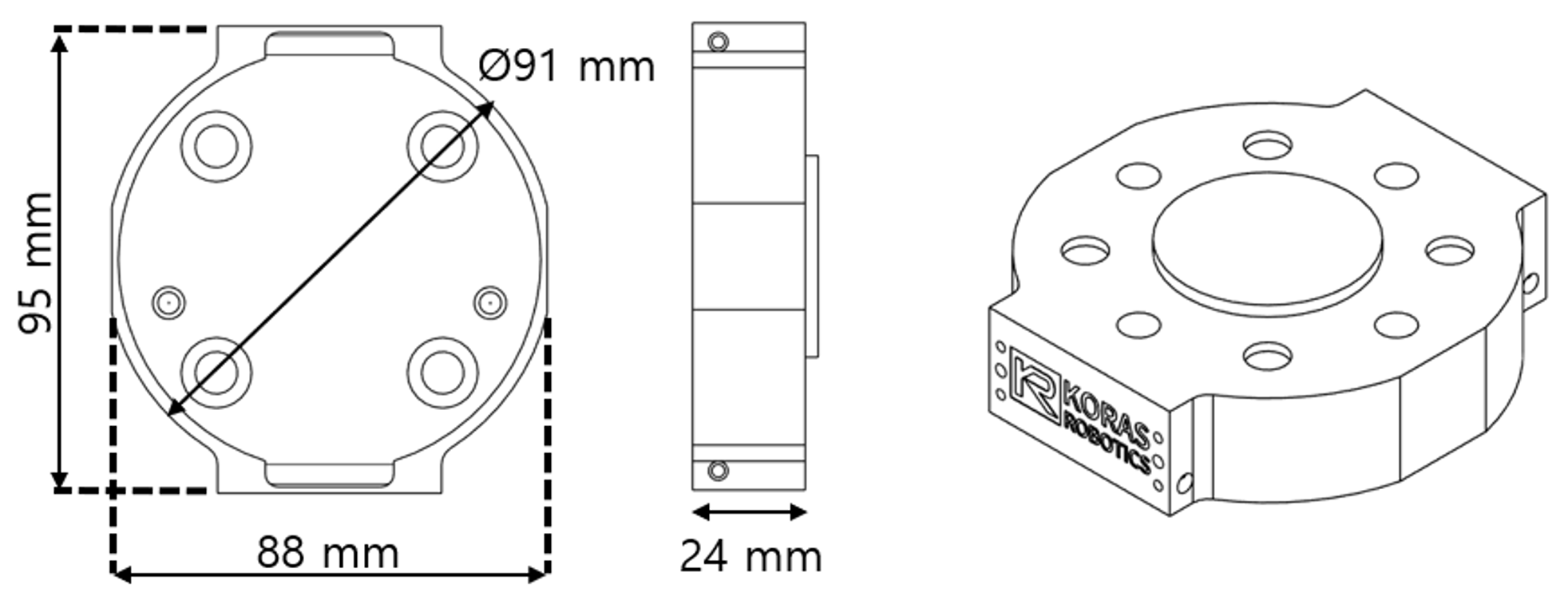

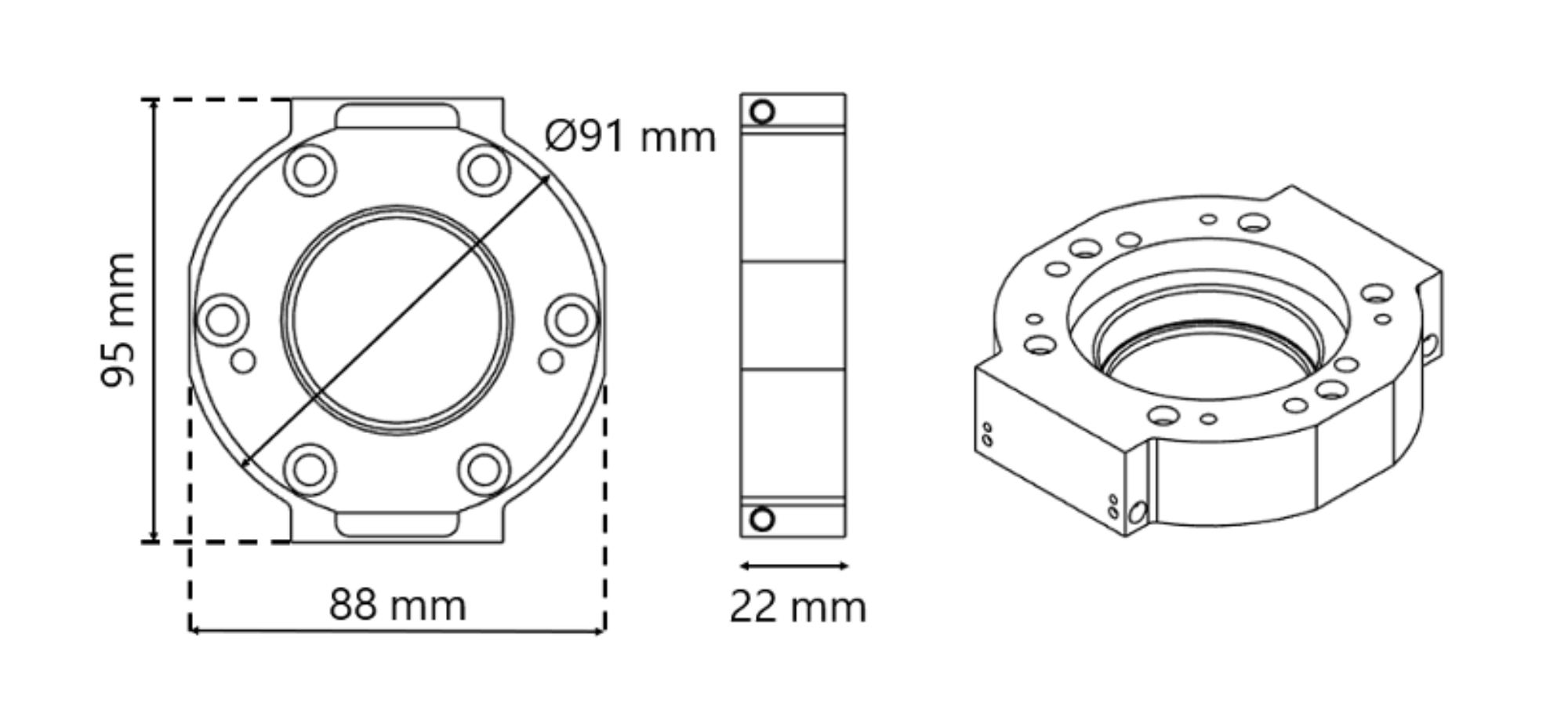

Dimensions of ATC-20-R

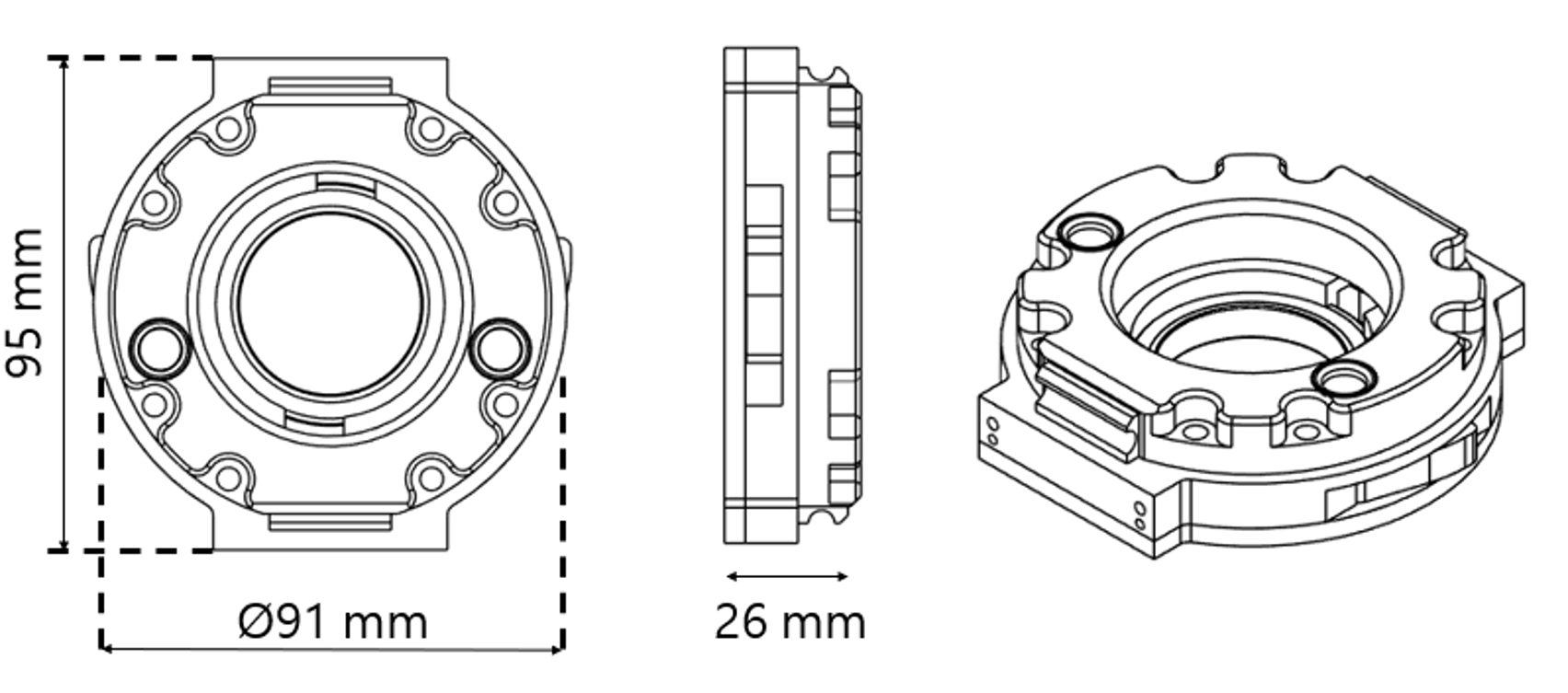

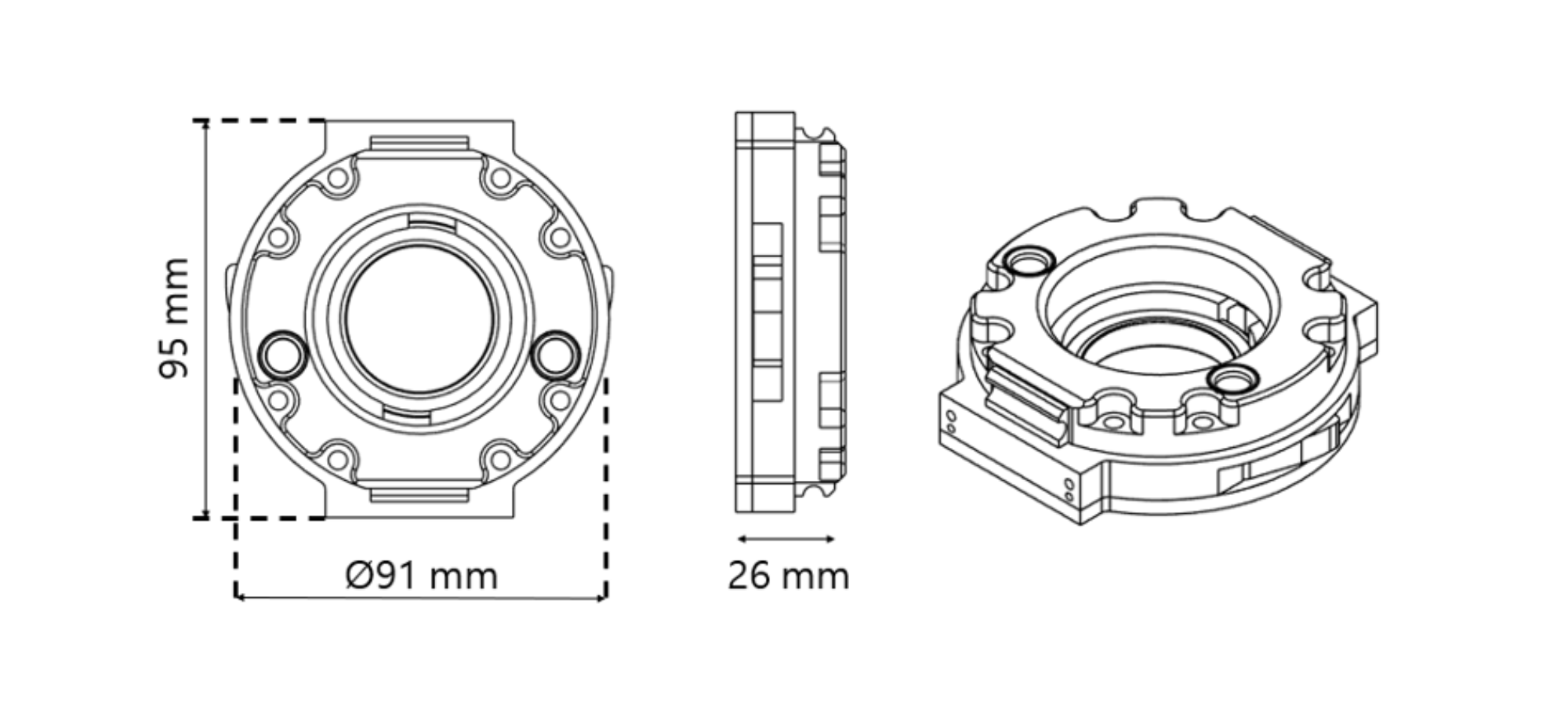

Dimensions of ATC-20-T

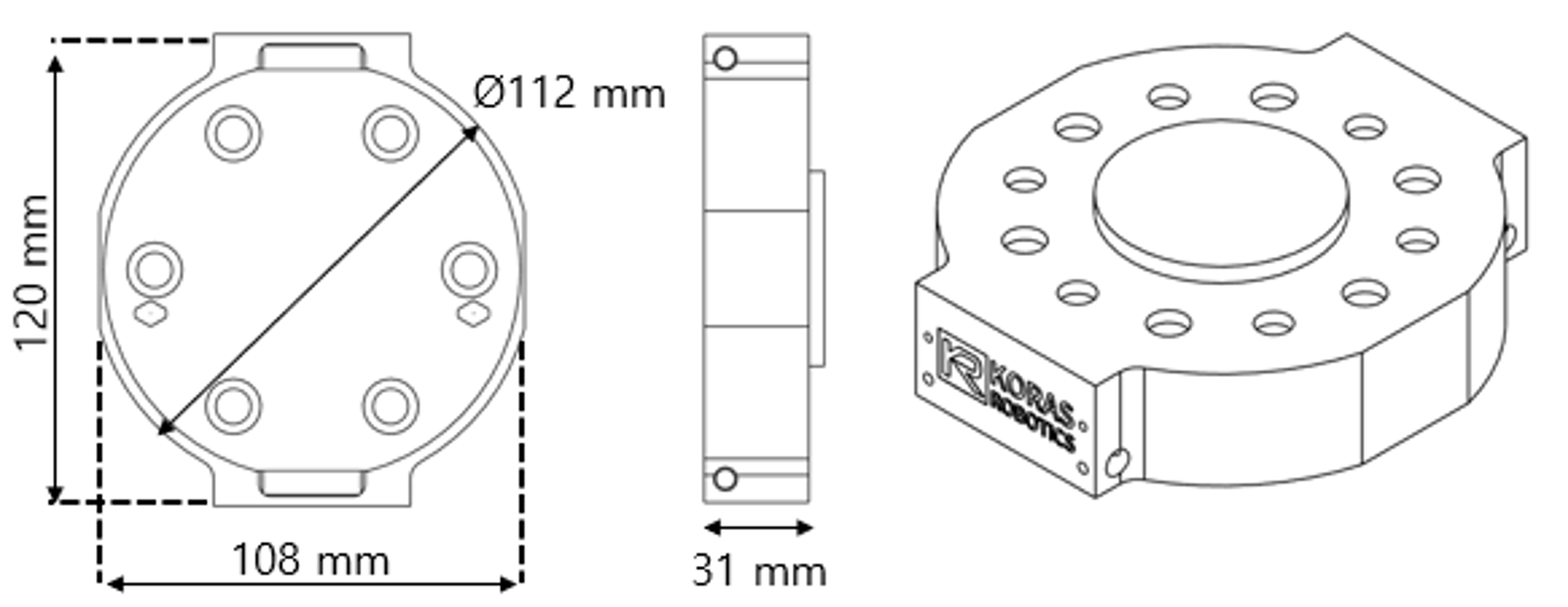

Dimensions of ATC-30-R

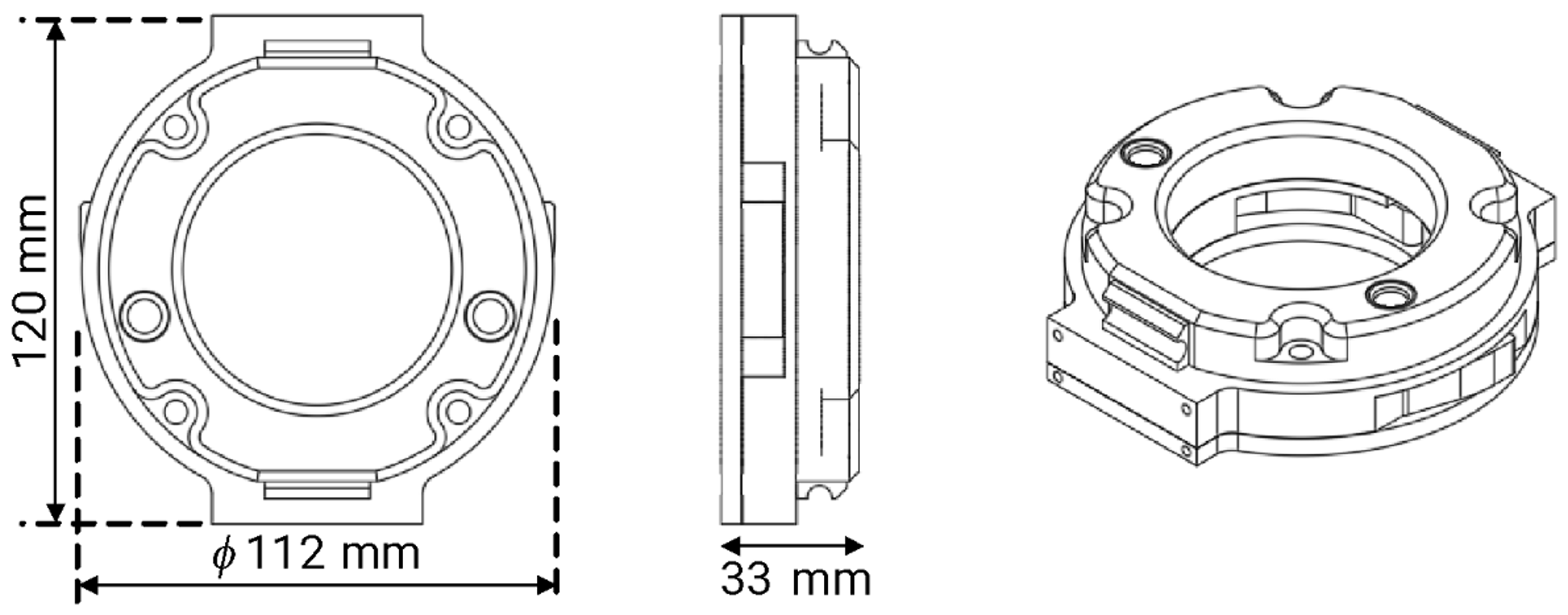

Dimensions of ATC-30-T
