Motorized ATC (MATC)

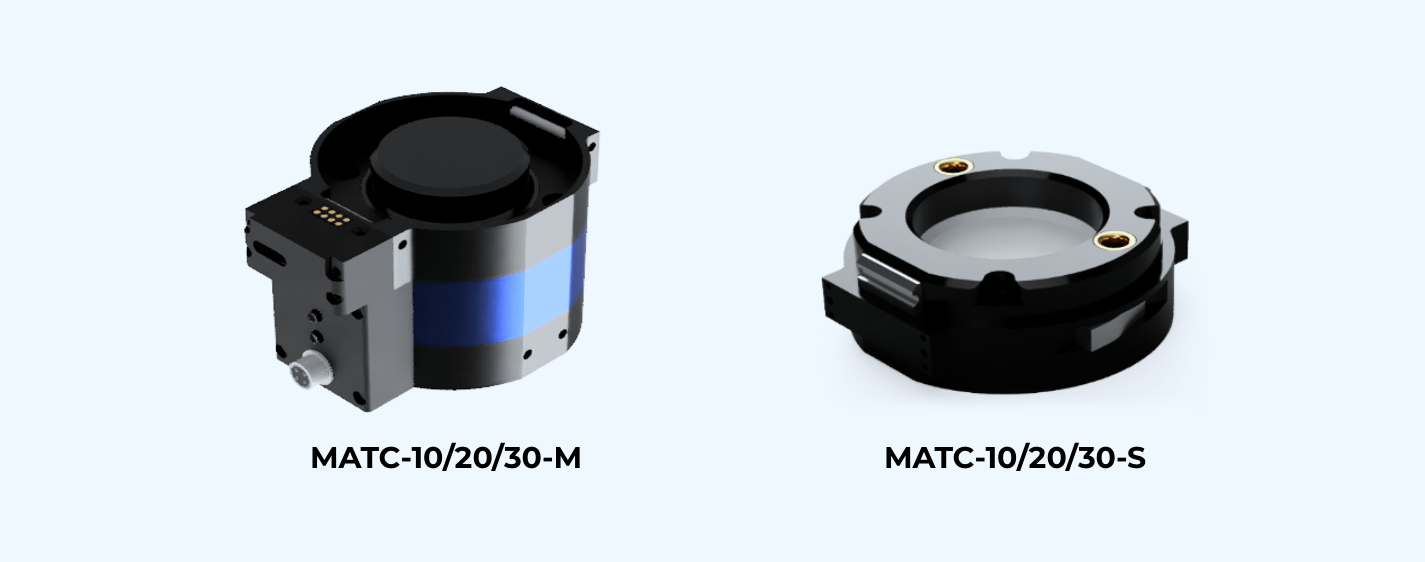

MATC-10/20/30 (Motorized Automatic Tool Changer with 10/20/30 kg payload)

The MATC is a motorized ATC that integrates a motor and controller in the robot-side unit (MATC-R), enabling delivery of rotational power to all tools attached to the tool-side unit (MATC-T).
Tools and grippers compatible with the MATC do not require their built-in drive units and consist solely of mechanical components, resulting in lower costs and allowing users to design and fabricate their own tools without concerns about incorporating actuators.
Using the “initialize,” “open,” and “close” buttons provided on the MATC, users can operate tools even without connection to a robot or computer, greatly facilitating the development of tooling solutions.

Product specifications

Model	MATC-10-R	MATC-10-T	MATC-20-R	MATC-20-T	MATC-30-R	MATC-30-T
Payload	10 kg		20 kg		30 kg
Supply voltage	24 VDC
Rated current	1.20 A		1.20 A		1.35 A
Peak current	1.80 A		1.80 A		2.03 A
Communication	Modbus RTU		Modbus RTU		Modbus RTU
Rated motor torque	0.15 Nm		0.45 Nm		0.60 Nm
Rated motor speed	900 rpm		300 rpm		310 rpm

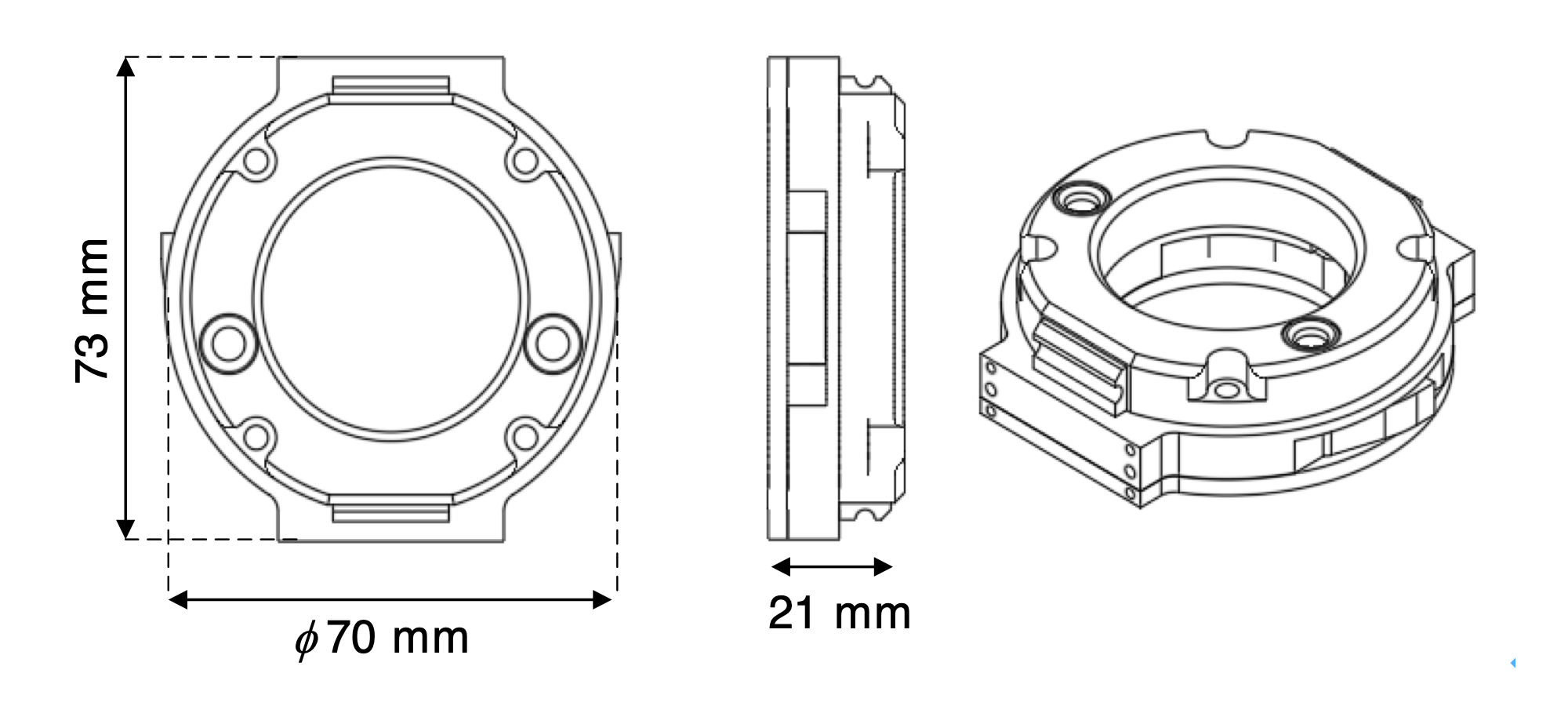

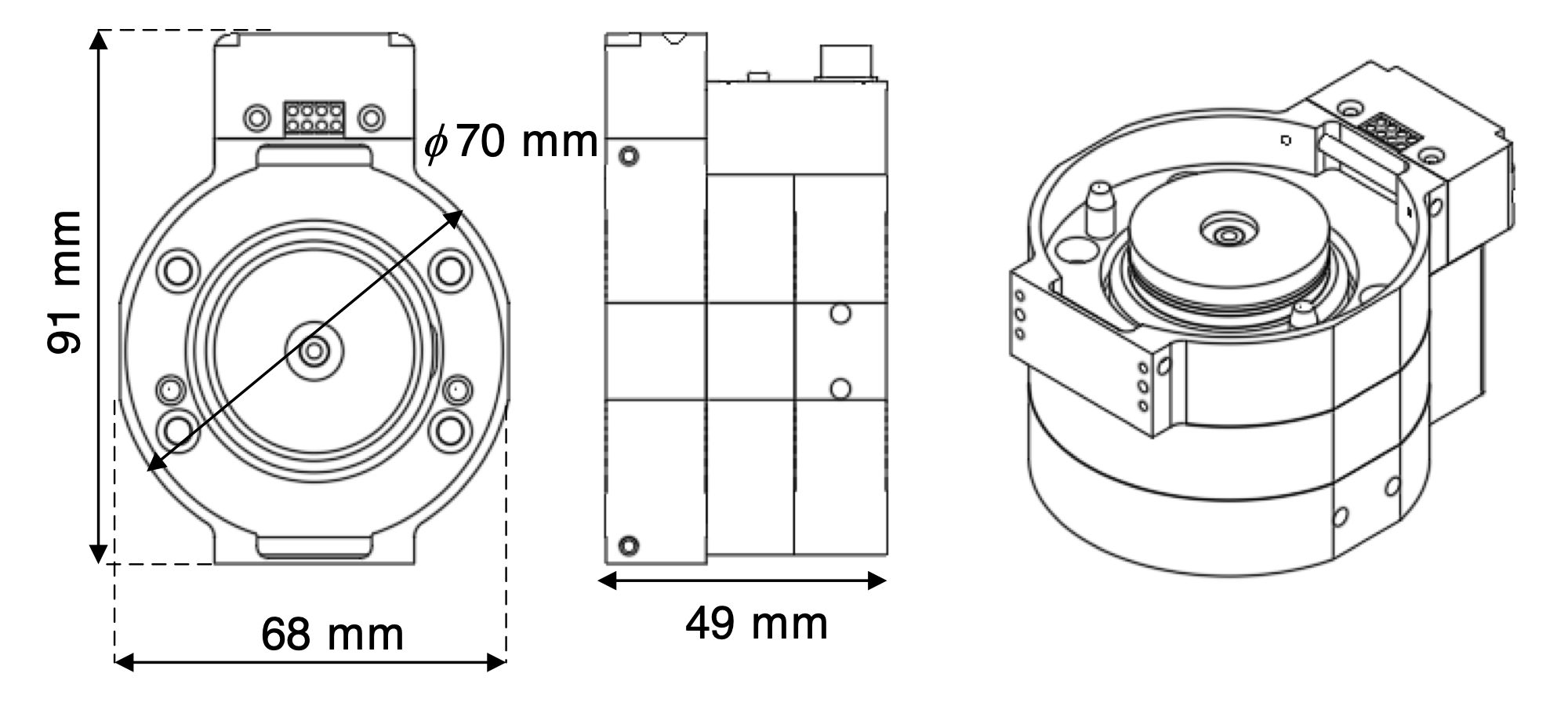

Diameter	70 mm	70 mm	91 mm	91 mm	112 mm	112 mm
Height	49 mm ¹⁾	21 mm ¹⁾	63 mm ²⁾	26 mm ²⁾	68 mm ³⁾	33 mm ³⁾
Weight	0.44 kg	0.17 kg	0.71 kg	0.28 kg	1.54 kg	0.49 kg
Repeatability	0.05 mm		0.05 mm		0.1 mm
