Bowl Gripper (3 kg Payload)<em>.</em>
Bowl Gripper (3 kg Payload)

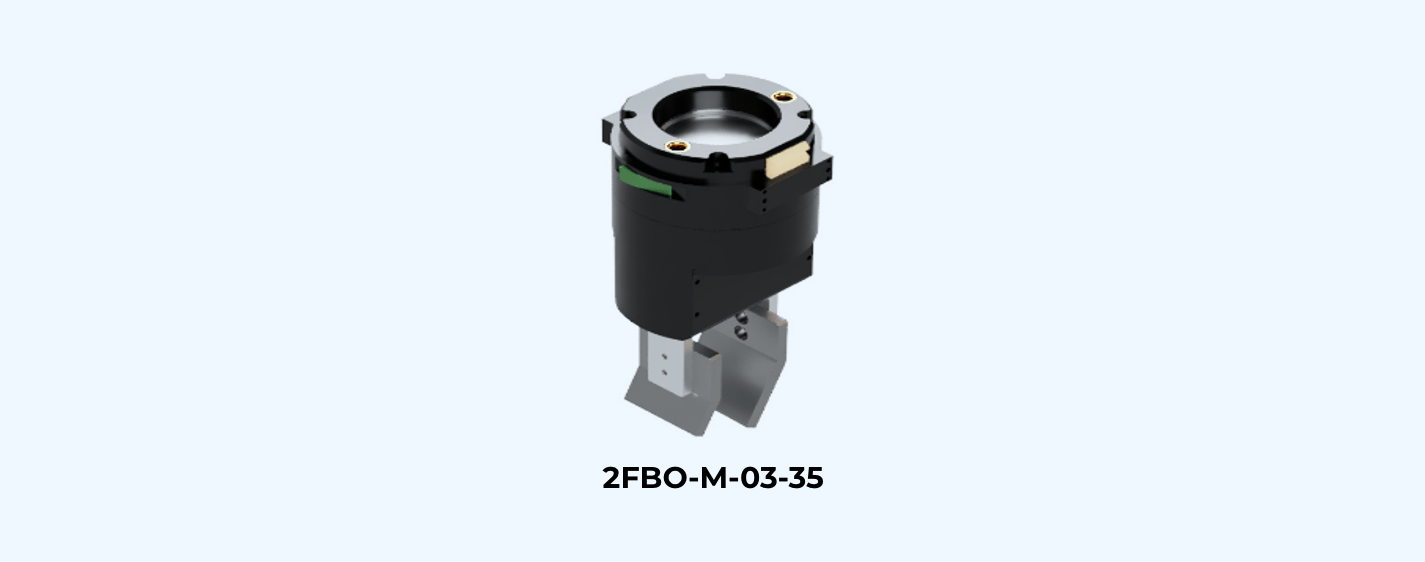

2FBO-M/I-03-035 (Bowl Gripper with 3 kg Payload & 35 mm Stroke)
Product overview
- Can grip bowls with a wide range of curvatures using a single pair of fingers.
- Grips the rim of the bowl to ensure hygienic handling during cooking tasks.
- Enables actions such as flipping the gripped bowl.
Product specifications
| Model | 2FBO-M-03-035 | 2FBO-I-03-035 | ||||
|---|---|---|---|---|---|---|
| No. of fingers | 2 (1 DOF) | |||||
| Force-fit payload | 3 kg | |||||
| Stroke | 35 mm | |||||
| Grip force | 72 N | |||||
| Closing time | 1.2 s (default) / 1.0 s (min) | |||||
| Weight | 0.83 kg 1) | 1.1 kg 2) | ||||
| Dimensions | Ø70×145(H) mm 1) | Ø70×170(H) mm 2) | ||||
| Supply voltage | 24 VDC | |||||
1) Including the MATC tool-side unit (MATC-10-T)
2) Including the drive unit and excluding the ATC tool-side unit & robot bracket

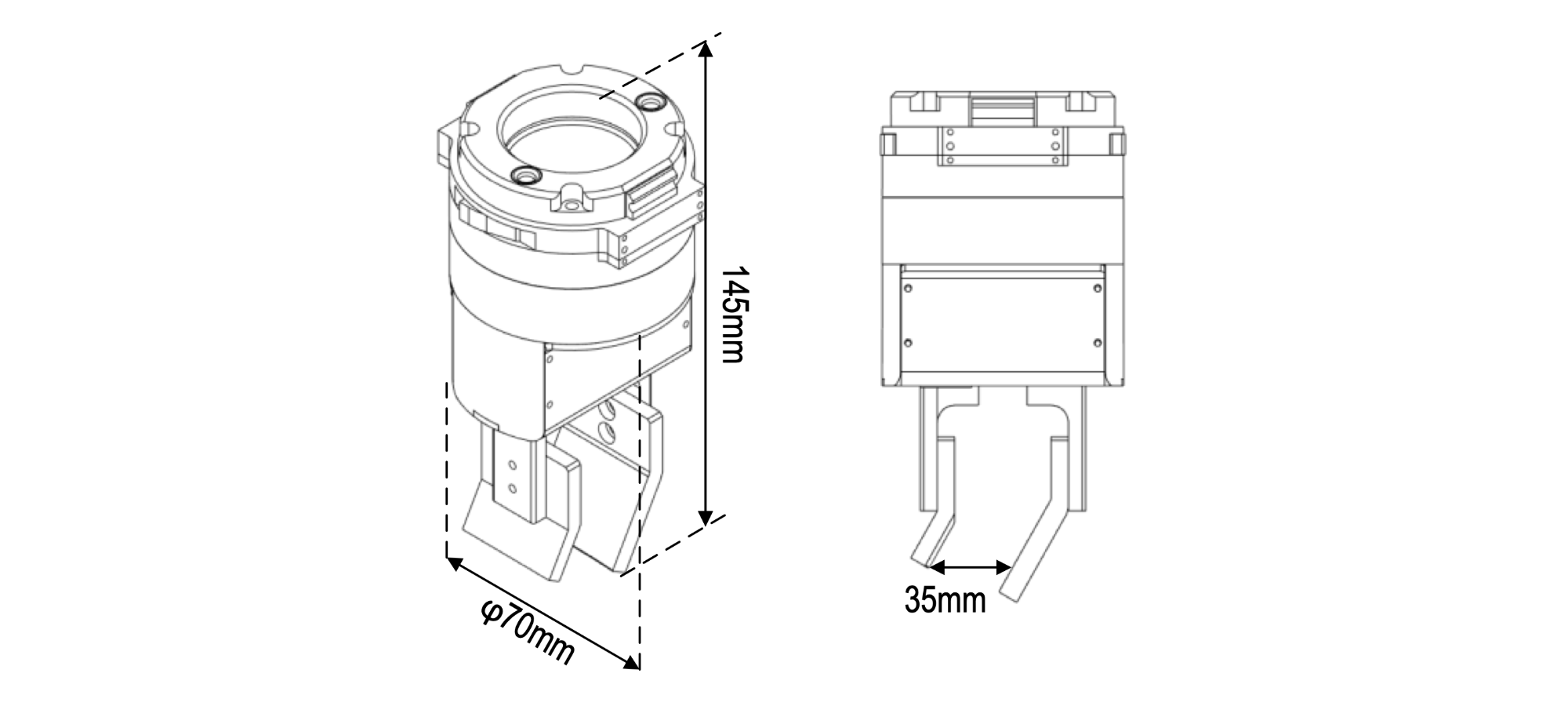

Dimensions of 2FBO-M-03-035
